| Min. Order: | 10 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CFR,CIF,EXW |
| Payment Terms: | L/C, D/P, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 30000PCS/Year |
| Packing: | Valves are wrapped in... | Delivery Date: | stock or 15 days |
|---|---|---|---|
| Power: | Others | Standard or Nonstandard: | Standard |
| Pressure: | Medium Pressure | Structure: | Check |
| Material: | Others | Temperature of Media: | Others |
| Media: | Water | Brand Name: | xbvalve |
| Standard: | ANSI | Size: | Dn40~Dn900 |
| Specification: | DN40-700 | HS Code: | 8481804090 |
| Flow Direction: | Unidirection | Application: | Industrial Usage, Water Industrial Usage, Household Usage |
| Inch: | 1-1/2 "~24" | Certificate: | ISO, Ce .API RS |
| Transport Package: | Export Polywood Case |

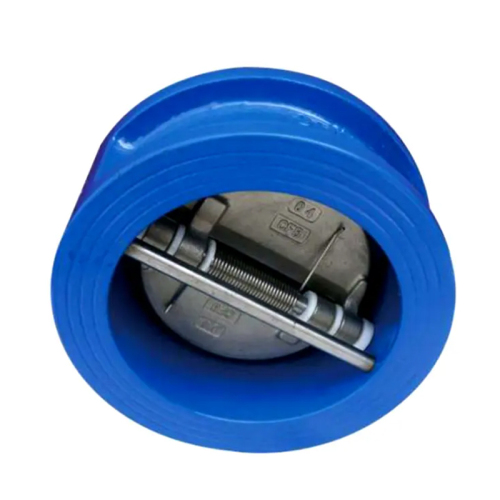

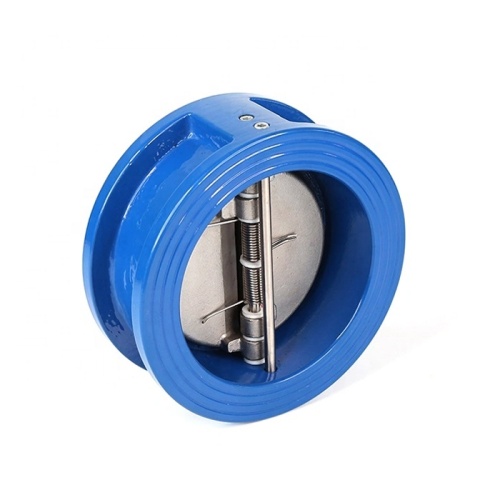

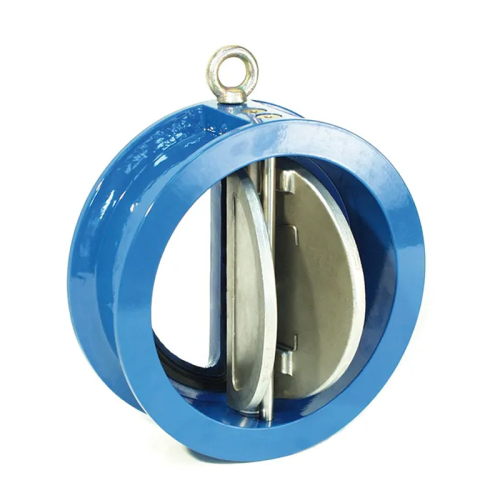

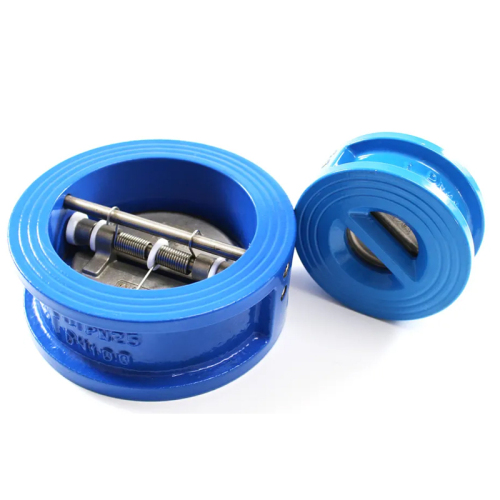

PN16 DN100 Ductile Iron spring loaded dual disc wafer check valves, Wafer Type Dual Disc Check Valve /Ductile iron Check Valve ,Double Flange Swing Check Valve/ Cast Iron Swing Check Valve ,WCB/CF8/CF8M/CF3/CF3M Wafer Type Dual Plate/DoubleDisc Swing Check Valve
Product Feature
|
|
|
|
|
Technical Parameters
| Nominal diameter(mm) | 50~900 | 50~900 | ||
| Nominal pressure(Mpa) | 1.0 | 1.6 | ||
| Testing pressure | Shell(Mpa) | 1.5 | 2.4 | |
| Seal(Mpa) | 1.1 | 1.76 | ||
| Suitable temperature(°C) | -40°C~200°C | |||
| Suitable medium | Drinking water,sewage,seawater,food,medicines,gas,oil | |||
Main Raw Material
| Body | Disc | Stem | Seat | Spring |
| Cast iron | Plated ductile iron | Stainless steel | EPDM/NBR | SS304 |
| Ductile iron | CF8 | WRAS-EPDM | SS316 | |
| Carbon steel | CF8M | Viton | ||
| Stainless steel | Aluminum bronze | customised | Silicon | |
| PS:Vulcanized seat | ||||
Reference Standar
| Design standard | API 594 | |||
| Testing standard | API 598 | |||
| End flange standard | DIN PN10 / PN16,ANSI 125# / 150#,BS4504 PN10 / PN16 | |||
| Face to face standard | API 594 | |||
Overall Dimension and Weight
| Size | ΦD | ΦD1 | L | Weight(kg) | |||
| DIN PN10 | DIN PN16 | ANSI150# | ANSI 125# | ASNI 150# | |||
| DN50 | 107 | 107 | 104 | 65 | 54 | 60 | 1.75 |
| DN65 | 127 | 127 | 123 | 78 | 60 | 67 | 2.29 |
| DN80 | 142 | 142 | 136 | 94 | 67 | 73 | 3.00 |
| DN100 | 162 | 162 | 174 | 117 | 67 | 73 | 5.00 |
| DN125 | 192 | 192 | 196 | 145 | 83 | 83 | 7.00 |
| DN150 | 218 | 218 | 222 | 171 | 95 | 98 | 9.50 |
| DN200 | 273 | 273 | 279 | 224 | 127 | 127 | 18.53 |
| DN250 | 328 | 329 | 340 | 276 | 140 | 146 | 31.00 |
| DN300 | 378 | 384 | 410 | 338 | 181 | 181 | 52.00 |
| DN350 | 438 | 444 | 451 | 375 | 184 | 184 | 70.00 |
| DN400 | 489 | 495 | 514 | 416 | 191 | 191 | 101.00 |
| DN450 | 539 | 555 | 549 | 467 | 203 | 203 | 119.00 |
| DN500 | 594 | 617 | 606 | 514 | 213 | 219 | 139.00 |
| DN600 | 695 | 734 | 717 | 616 | 222 | 222 | 205.00 |
| DN700 | 810 | 804 | 831 | 720 | 305 | 305 | 370.00 |
| DN750 | 883 | 770 | 305 | 305 | 420.00 | ||
| DN800 | 917 | 911 | 940 | 825 | 305 | 305 | 480.00 |
| DN900 | 1017 | 1011 | 1048 | 925 | 368 | 368 | 630.00 |
PRODUCT FEATURE
